Key Takeaways
- A chimney that’s too short won’t draft properly — combustion gases can back-draft into the living space.
- The 3-2-10 rule: at least 3 feet above the roof penetration, and 2 feet above any structure within 10 feet horizontally.
- Commonly missed on DIY additions and renovations — easy to check from the ground.
- Correction typically means a chimney extension, handled by a mason or chimney contractor.
Chimney height isn't arbitrary. Too short, and the chimney doesn't draft properly — combustion gases don't evacuate efficiently and can back-draft into the living space. The 3-2-10 rule is the standard reference point for residential chimneys, and it's simple enough to remember and check yourself.

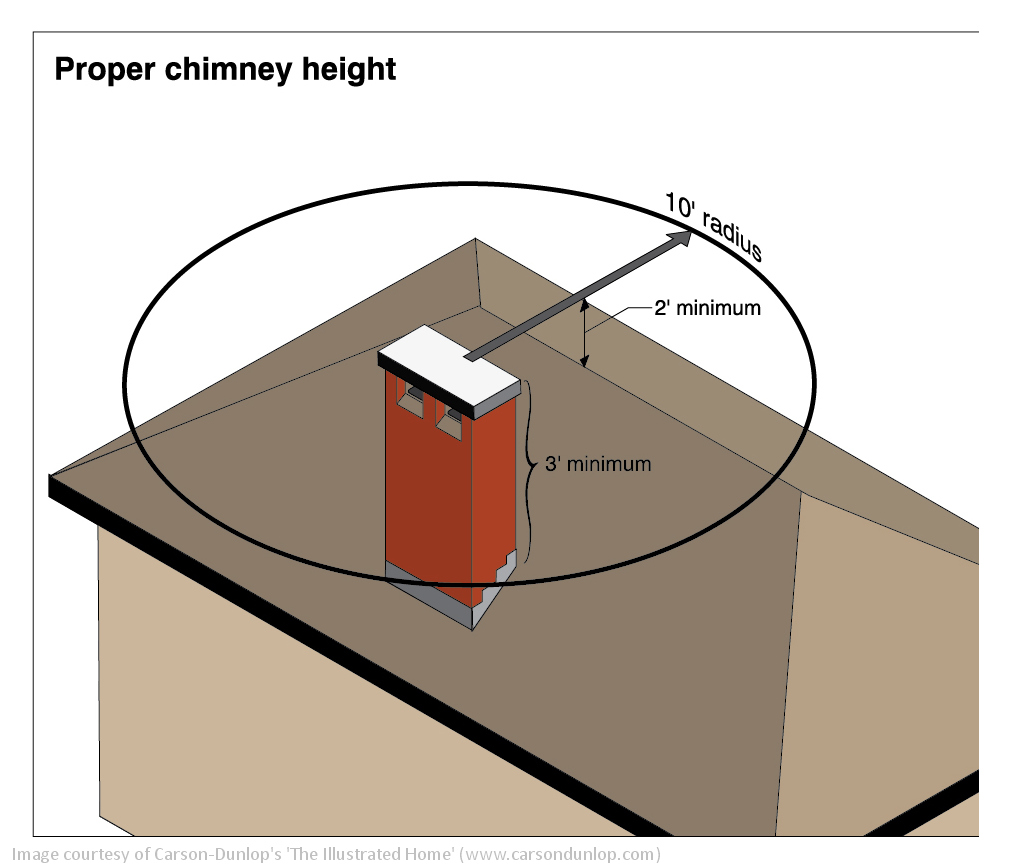

The rule
A chimney must:
- Project at least 3 feet above the roof surface where it penetrates, measured on the low side
- Be at least 2 feet higher than any part of the roof structure (or other obstruction) within a 10-foot horizontal radius
That's it. Three feet up from the roof, two feet above anything within ten feet. The name is just the three numbers in order.
Why it matters
The purpose is to get the chimney opening above the turbulent airflow that forms around the roof and nearby structures. A chimney that terminates too close to the roofline or to a nearby dormer, addition, or ridge gets caught in this turbulence. Instead of drawing combustion gases up and away, the chimney can actually reverse-draft, pulling outside air (and sometimes rain and debris) down into the flue, and pushing combustion byproducts — including carbon monoxide — back into the home.
The 3-2-10 rule is a minimum, not a guarantee. Meeting it doesn't mean your chimney will always draft perfectly — local wind patterns, chimney diameter, appliance type, and flue lining all affect performance. But failing to meet it is a red flag that goes in every report.
What I look for on an inspection
From the ground with binoculars, and from the roof when conditions allow, I check chimney height against the roofline and any structures within 10 feet. Short chimneys are surprisingly common, especially on older homes where a chimney cap was added over the years (which reduces effective height), or where an addition brought a new roof section closer to an existing chimney. Low chimneys on homes with woodstoves or oil furnaces are a particular concern.
If you have a wood-burning fireplace or stove: A low chimney is often the first thing to investigate if you're having smoking or draft problems. Have it assessed by a WETT-certified technician.
